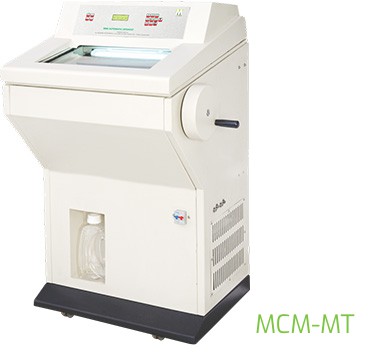

MCM-MT Manual Cryostat Microtome is a high-performance equipment with a retraction mechanism that enables consistently accurate, frozen tissue sectioning in diagnostic and research laboratories. It has motorised specimen advance and sectioning with optional disposable blade holder with anti roll device.
Features
- Manual specimen advance and sectioning
- Retraction mechanism ensures the safety of the specimen
- Intuitive control panel makes it easy to operate
- Spacious Stainless Steel Cryochamber which is easy to clean and disinfect
- Hermetically sealed and Thermostatically Controlled refrigeration system
- Lockable Handwheel
- Heated Window that prevents frost formation
- Chamber Illumination for clear visibility
- Built-in drainage system
- Easy mobility with heavy-duty castors
- Electronic Temperature Control
- Safety Alarm
Motorised Feed Control
Motorized advanced and retract keys allow for smooth, precise positioning of the microtome chuck to the bladeholder. This provides uniform and flat section every time.
Control Panel LCD Display
The large display and the feather touch keys makes it easy for the user to set the chamber conditions like temperature and illumination.
Safety Feature
The microtome is equipped with safety alarm to indicate start and end of the horizontal feed. The handwheel is lockable at any position.
| TECHNICAL SPECIFICATIONS | VALUE |
|---|---|
| Temperature Setting Range | 0 to -30 deg C |
| Section Thickness Setting | 1-30 microns in steps of 1 micron |
| Operation | Manual |
| Specimen Size | 30 x 30 mm |
| Horizontal Specimen Feed | 20 mm |
| Vertical Specimen Stroke | 60 mm |
| Specimen Retraction | Yes |
| Chamber Illumination | Yes |
| Motorized Forward /Backward | Yes |
| Knife Holder Adjustments | Adjustable |
| Knife Length | 120-140mm |
| Disposable Blade Holder | Optional |
| Refrigeration | Hermetically sealed and Thermostatically Controlled |
| Nominal Voltage | 220V |
| Nominal Frequency | 50-60 Hz |
| Dimensions (WxDxH) | 660 x 640 x 1130 mm |
| Weight | 85kgs |
