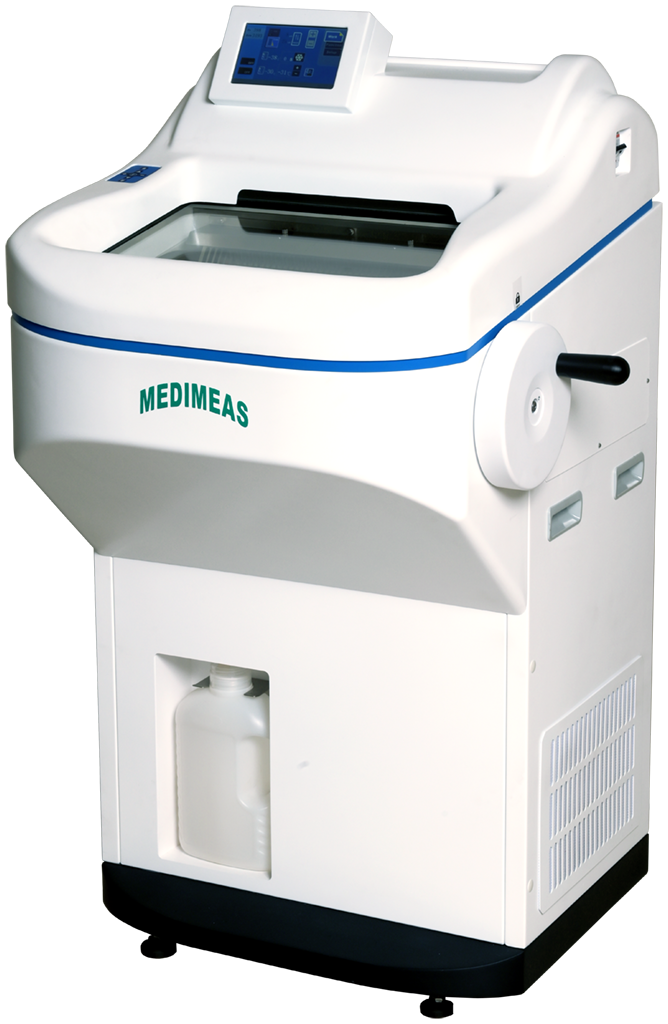

Ergonomically designed new Medimeas MCM-ST Fully Automatic Cryostat Microtome with touch screen for high-quality sectioning, widely used for pathological diagnosis, analysis and research in hospital and medical colleges.
- The Cryostat floor standing open top cryostat with a spacious stainless steel cooling chamber.
- Encapsulated microtome with spacious Cryo-chamber
- There inbuilt integrated electronic control system which can be controlled by user through digital display to set the parameters.
- Freestanding cryostat with encapsulated, splash-proof microtome.
- Microtome user flexibility to select the coarse feed wheel direction of rotation depending on the requirements
- Easy to clean, actively cooled specimen preparation zone with quick-freezing shelf for up to 15 specimens plus 2 Peltier element freezing stations (temperatures down to minus 45+5° C) with manual defrost cycle.
- Well illuminated cabinet.
- Easy to handle & stable clamping the specimen discs
- Adjustable Cutting Angle
- The blade holder lateral displacement feature for the maximum usage of blade.
- The system separate freezing device or compressor systems for cooling chamber and specimen.
- Automatic manual chamber defrost facility with one automatic defrost €/24 hours; short duration defrost cycle of not more than 15 minutes.
- Fast forward/Backward function.
- Dual Compressor for Rapid Freezing
- Enclosed Drainage System
- Indicate by visual display with different section thickness settings.
- Antistatic anti roll guide.
- Low maintenance microtome with cross-roller guides.
- Lockable handwheel at any position for user safety.
- Active cool freeze shelf.
- Maximum cooling time to attain the lowest temperature less than 4 hours after start up.
- Inbuilt UV-C Disinfection system.
- One or more quick freezing stations available.
- Facility to trim available.
- LCD/Touch Screen display for Cryochamber temperature, actual time, defrost time and section thickness setting.
- Automatic retraction on return stroke.
- The microtome maintenance free fully automatic or semi automatic with an option of manual operation and capable of cutting section thickness setting ranging.
- The specimen storage shelf space for placing minimum 5 chucks.
- External casing high performance Cryostat microtome is fabricated by using best in class alloyed aluminium which gives excellent protection against moisture, rust, dirt & water attacks.
- Rotary Microtome based with stepper motor technology to ensure reproducible sections.
- Chamber illumination light- bright white light.
- Equipped with various safety features for the efficient reduction of pathogens, Contamination & other micro impurities.
- Finger protection guard to protect the user from any injuries caused due to blade.
- Condensation free operation inside the inner chamber.
- Hand wheel lock- mechanical.
- Integrated vacuum system for stretching of the tissue sections and suction of cutting debris.
- Independent temperature setting of specimen holder and Make holder adjustable to minus 40°C or less.
- Universal disposable blade system for both low- and high- profile blades with disposable blades (1 pack each of low- and high-profile blades).
- Manual cutting wheel provided on right side of instrument.
- Closed drainage system.
- Provided with power backup.
| TECHNICAL SPECIFICATIONS | VALUE |
|---|---|
| Section Thickness Range | 1-100 microns |
| Increment Range (I) | From 1-5 micron in 0.5 micron increments |
| Increment Range (II) | 5-20 microns in 1 micron increments |
| Increment Range (III) | From 20-60 micron in 5 micron increments |
| Increment Range (IV) | From 60-100 micron in 10 micron increments |
| Trimming Range | 1-600 microns |
| Maximum Specimen Size | 35 x 35 mm |
| Horizontal Specimen Feed | 25 mm |
| Vertical Specimen Stroke | 65 mm |
| Motorized Coarse Feed | Two speeds |
| Specimen Retraction | 5-100 microns in 5 micron increment; can be deactivated |
| Specimen Orientation | 8 degrees (X-Y axis) |
| Cryo Chamber Temperature | -1 to -35 deg C Adjustable |
| Cooling Down Time to - 35 deg C | 2 hrs. |
| Quick Freeze Shelf Temperature | < - 50 deg C |
| Chamber defrosting | Programmable or Manual |
| Nominal Voltage | 220V |
| Nominal Frequency | 50-60 Hz |
| Weight | 140kgs |
