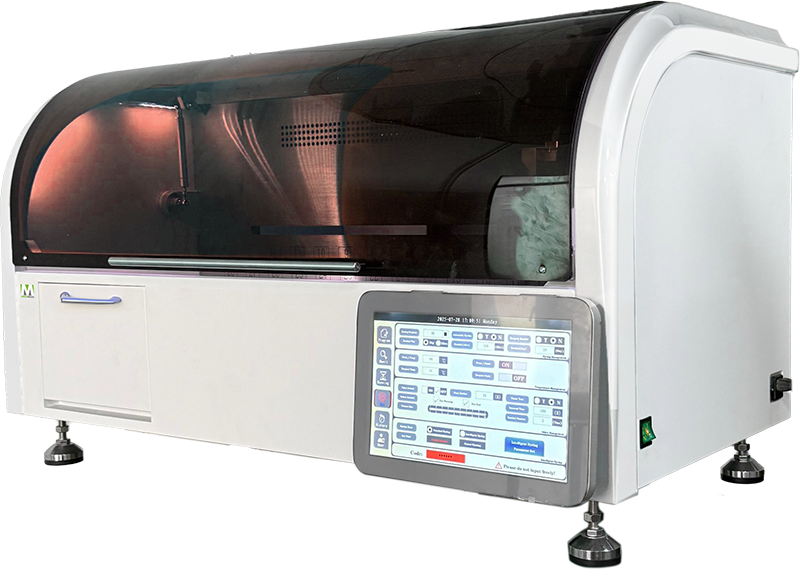

The unique benchtop designs offer reliable technique in the Small space of laboratory Point. MSS-LS has 28 stations each with volume less than 500ml. 20 independent programs can be stored in the memory. All the reagent containers are completely closed to prevent evaporation. Chamber exhaust prevents solvent odours and pollution. User can load slide racks randomly, achieving efficiency for a high throughput staining.
Features

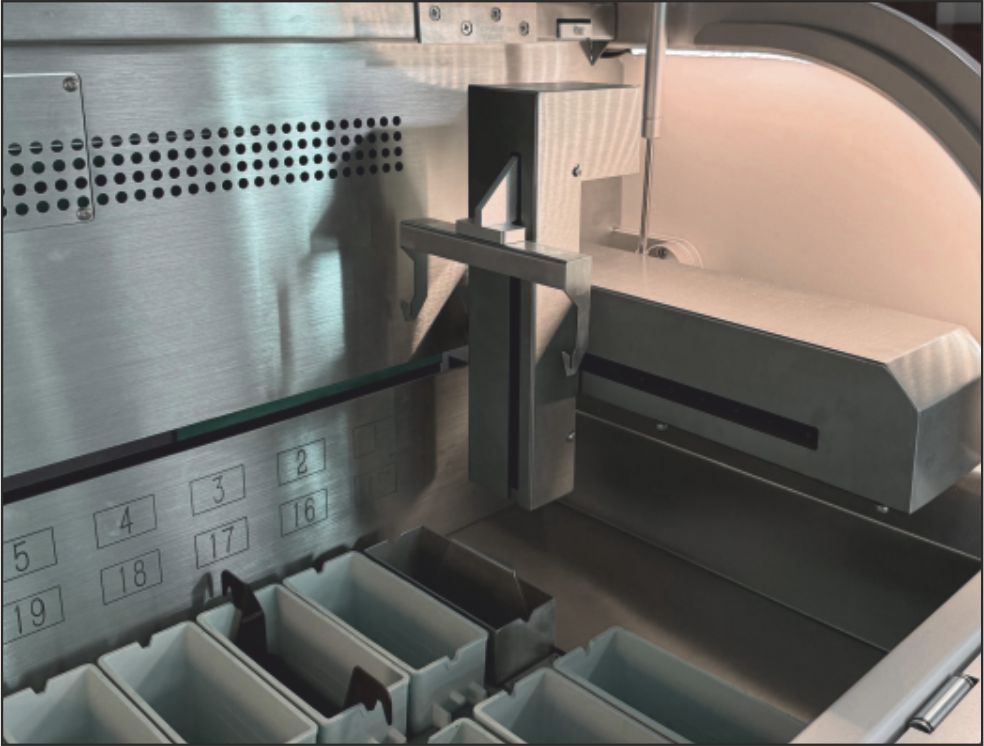

- High Throughput robotic arm for X-Y-Z directions, space saving for all types of Staining for routine application.
- Specimen slide throughout upto 300-600 slides per hour depending on protocol
- Programmable up and down movement of robotic arm during dip in stain
- Open System Compatible with non PAC Reagent, stain and slides
- Simultaneous staining of various different staining protocols.
- Racks assigned to the correct staining protocol.
- Large colour screen with user friendly keypad with touch screen easy to access menu.
- Battery back-up for at least 30 minutes of power
- Upto 10 slide racks can be run simultaneously.
- Minimized user exposures to hazardous reagent fumes.
- Solvent resistant body which is closed at time of processing and solvent resistant screen to monitor staining process.
- Reagent containers exchanged quickly and easily.
- Audible warning buzzer in case of any error during operation.
- Exact incubation times with simple, menu-driven programming.
- Integrated Fume extraction system having fan with charcoal filter to remove hazardous fumes.
- Gentle vibration to slide rack during lifting to reduce carryover contamination or drip tray technology
- Incubation times and sequence of use of reagent stations must be freely programmable as per user's choice
- Programmable for 20 programs of up to 100 steps
- Programmable for routine H & E Papanicolau (pap) and others staining procedures.
- Continuous random loading and unloading of slides via rack entry and exit door.
| TECHNICAL SPECIFICATIONS | VALUE |
|---|---|
| No. of Stations | 28 |
| No. of Reagents Stations | 18 |
| Drying Stations | 1 |
| Drying station temperature setting | Ambient to 70°C |
| Wash Station | 5 (can be converted) |
| Slide Rack Capacity | 30 slides/basket |
| Loading Station | 2 |
| Unloading Station | 2 |
| Setting immersion Range Time for Each Step | 1 sec to 59 minutes |
| Reagent Volume (max.) | 450 ml |
