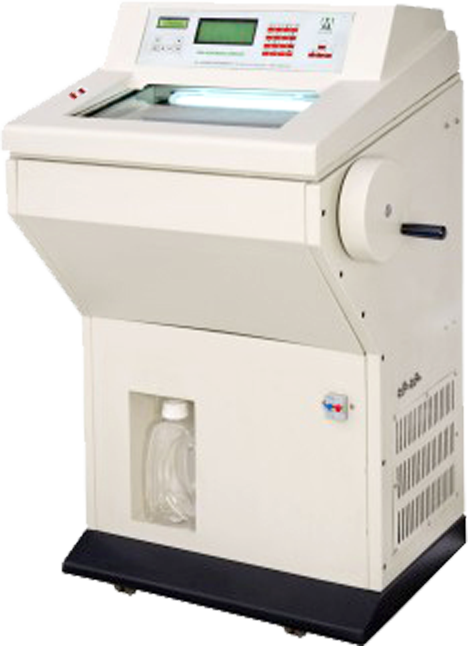

Ergonomically designed new Medimeas MCM-ST Semi Automatic Cryostat Microtome for high-quality sectioning, widely used for pathological diagnosis, analysis and research in hospital and medical colleges.
- Modular Cryostat Floor Standing Model
- Dual Compressor cooling system for specimen head and cryo-chamber & knife, free shelf separately
- Corrosion proof cryo-chamber with anti-glare illumination facility
- Insulated body to maintain constant temperatures and lower power consumption
- Even stainless steel cooling chamber with draining system for easy cleaning. Integrated Filtering system for wastes.
- Independent temperature setting for the specimen up to -50° c and cryo chamber/knife upto -35°c
- Detach function to remove used specimens from specimen chucks.
- Additional independent quick specimen freezing device with peltier
- Automatic approach system with option of selection of cutting window preferable manual cutting with hand wheel brake that can be activated at any position
- Microtome assembly & all electronic control outside the cryo-chamber
- Heavy duty rotary microtome which is maintenance-free
- Lateral displacement feature of knife holder for optimal use of blade
- Large LCD display to monitor instrument set & present parameters like Specimen temperature, Chamber temperature, Section thickness, etc
- Universal blade holder to accomodate both low and high profile blades
- Automatic & programmable defrosting
- Glass anti roll guide with antistatic feature to facilitate perfect stretching of sections is available
- Manual and programmed disinfection
- Height adjustable foot rest
- Integrated vacuum system for stretching of sections and suction of debris (Optional)
- Enclosed drainage system to allow controlled disposal of fluids.
- Large removable section waste tray
- Accessories of Cryostat Microtome
- Specimen chucks, cryo molds
- Disposable blades, cryostat oil, freezing medium, Cryo cleaning spray, Anti-rust oil, Lubricating oil and brushes, Disposable Blade holder
| TECHNICAL SPECIFICATIONS | VALUE |
|---|---|
| Section Thickness Range | 1 - 60 μm |
| Increment Range* |
1 - 10 μm in 1 μm increments 10 - 20 μm in 2 μm increments 20 - 60 μm in 5 μm increments |
| Horizontal Specimen Feed | 25 mm |
| Trimming Thickness Range* | 10 - 300 μm in 10 μm increments |
| Vertical Specimen Stroke | 65 mm |
| Maximum Specimen Size | 35 × 35 mm |
| UV Sterilization | Yes |
| Motorized Coarse Feed | 300 & 900 μm/sec. |
| Specimen Retraction | 5 - 75 μm in 5 μm increments |
| Cooling Downtime to -30°C | 60 mins. |
| Specimen Orientation | 8° (X, Y axis) |
| Cryo Chamber Temperature | -1 to -30°C Adjustable |
| Quick Freeze Shelf | ≤ -50°C |
| Peltier | Optional |

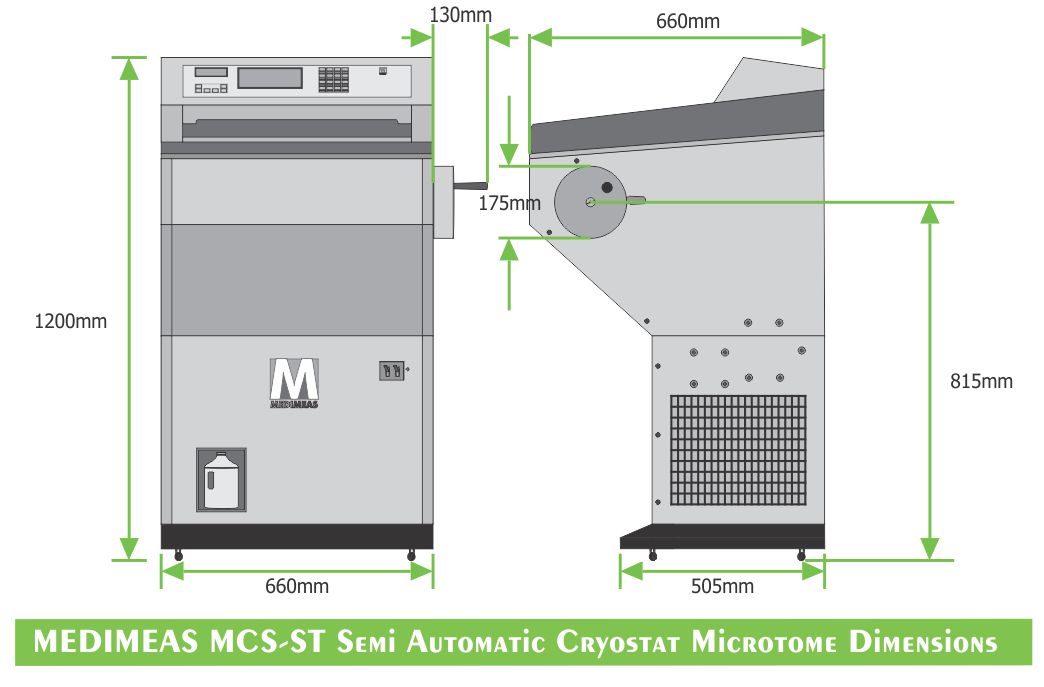

| Dimensions(with wheel) | W 80cm x D 66cm X H 120cm |
